Inline Cord Switch IP66 Waterproof DC 12V 20A Outdoor ON/Off Toggle Switch 4 Pin 2 Position DPST with Green LED Rocker Button Screwdriver Two-Side Entry and Exit Line

Description: Product Name: Waterproof Inline Cord Switch Operation Mode: ON-OFF Rating: DC 12V 20A Contact Type: Normally Open Connector Type: Quick Connect Terminal: DPST Actuator Type: Push Button Sealing ring: Silicone Casing: PA66 Gear position: 2 Position Foot position: 4 Pin International Protection Rating: IP66 Notes: 1. Ensure voltage and current compatibility: Before use, confirm that the device's voltage and current requirements match the switch specifications. DC devices must be within the DC 12V 20A range. Avoid overloading, which may damage the switch or cause a fire. 2. Check wiring integrity: Ensure the power cord is not damaged, aged, or has exposed conductors to prevent short circuits during wiring. Package Include: 1PCS Outdoor Waterproof Switch Box 1PCS KCD4 Toggle Rocker Switch 4PCS Screws 2PCS M3 Screws 5PCS Black Cable Ties 1PCS 3.0 Phillips Screwdriver

• 【Dimension】Inline Cord Switch：11.35mm x 53mm x 56mm / 4.46inch x 2.08inch x 2.20inch(L x W xH); Aperture: 6.3mm/0.82inch； Custom screws: 11.8mm x 4.8mm/0.46inch x 0.18inch (H x W); M3 screw: 15mm x 6.3mm/0.59inch x 0.24inch (H x W); Screwdriver: 80mm x 3.0mm/3.14inch x 0.11inch (L x W); Cable tie: 100mm x 3.0mm/3.93inch x 0.11inch (L x H).
• 【Superior Current Capacity】The DC 12V 20A switch easily controls low-voltage, high-current outdoor equipment like landscape lighting and electric sunshades.
• 【Wide Application】Suitable for LED indicator lights, patio lights, garden fountains, Fans, RVs, boats, Construction Site, High-power electrical appliance, Outdoor electrical appliance, Mechanical equipment, Medical electrical lamp and other electrical equipment.
• 【IP66 Waterproof】It has extremely high waterproof and dustproof capabilities, and can work for a long time underwater at a certain depth without being damaged. It can also effectively prevent the intrusion of dust.
• 【Waterproof sealing ring】At the connection between the switch and the cable, a built-in silicone sealing ring ensures that the switch maintains good waterproof performance during long-term use and prevents water seepage caused by changes in external pressure.
• 【PA66 Material】The shell is made of PA66 material, which has extremely high mechanical strength, can withstand high loads, can maintain stable physical and chemical properties in high temperature environments, and has certain electrical insulation properties.

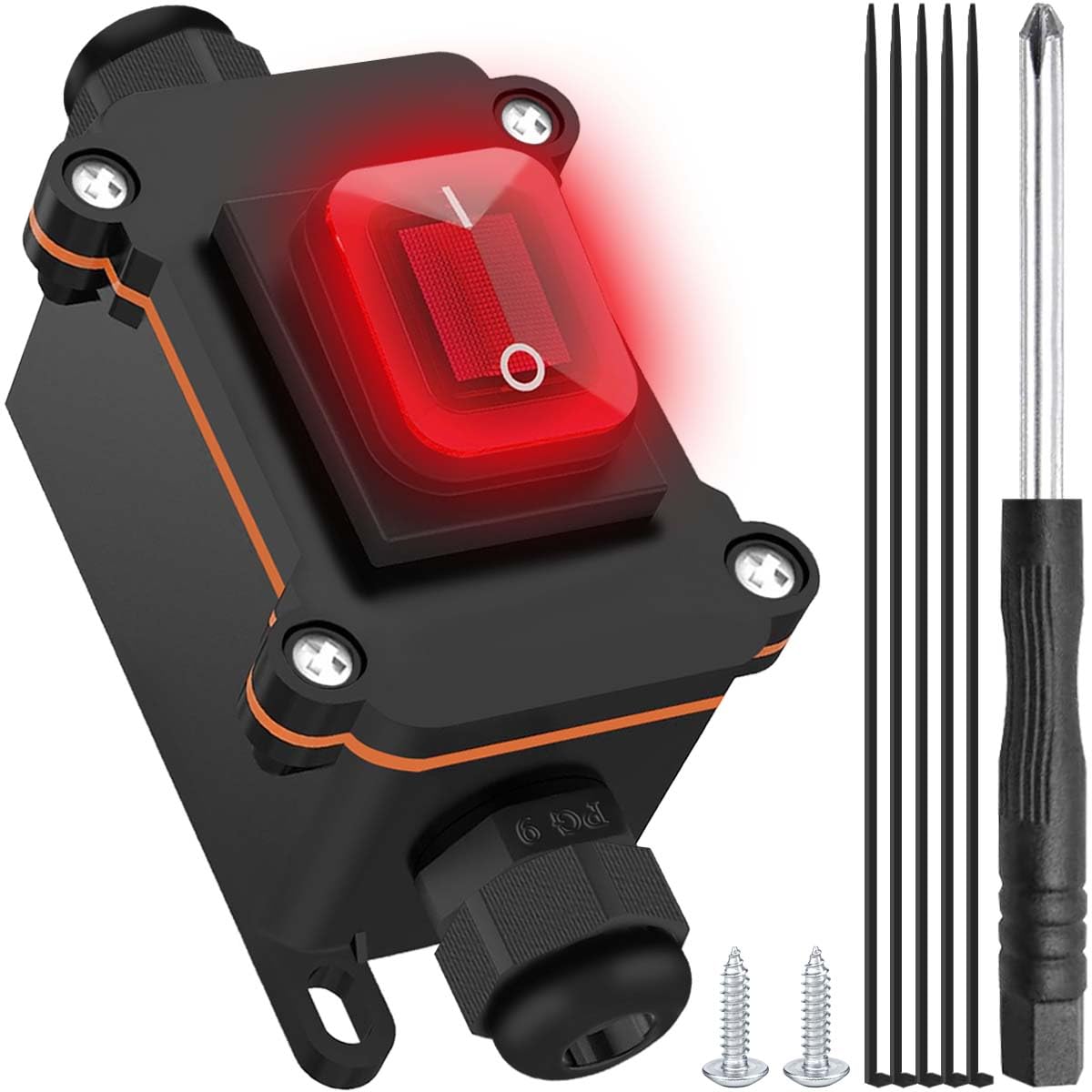

• 【Package Include】1PCS Outdoor Waterproof Switch Box, 1PCS KCD4 Toggle Rocker Switch, 4PCS Screws, 2PCS M3 Screws, 5PCS Black Cable Ties, 1PCS 3.0 Phillips Screwdriver.
